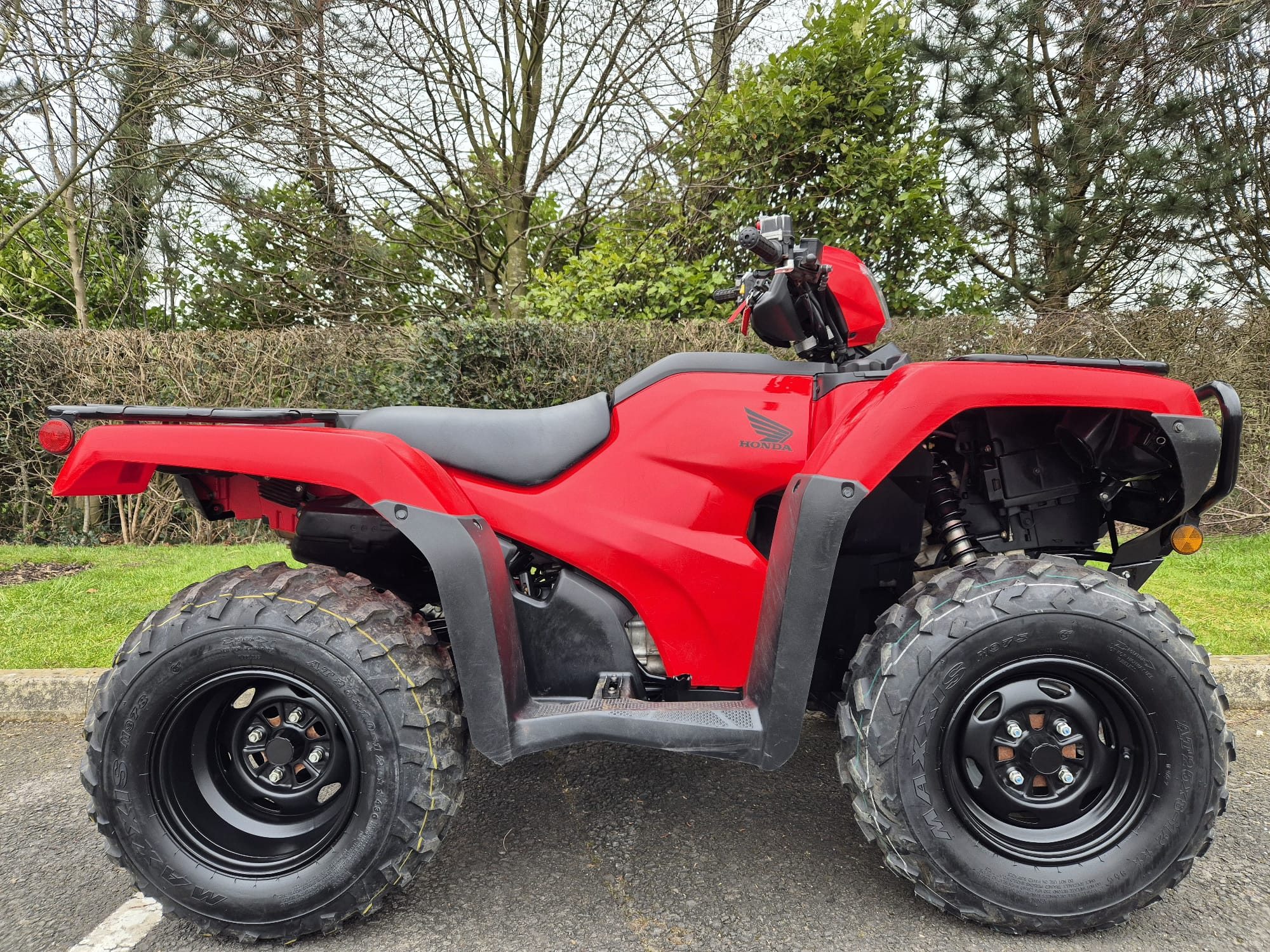

Honda TRX520FE2 Foreman, 2023 model. Comes with great features including power steering, selectable 2/4WD and electric shift making it a joy to ride. Comes in great condition, is fully serviced and fitted with new tyres all round.
Nationwide delivery available, just ask!
Engine
| Classification |
Heavy duty ATV |
| Engine |
518cc liquid-cooled, wet-sump, longitudinally mounted OHV 4-stroke single cylinder |
| Carburation |
PGM-FI 36mm throttle-body fuel injection system |
| Ignition |
Full-transistorized with electronic advance |
| Starter |
Electric |
| Transmission |
Five-speed with reverse and ESP Electric Shift. |
| Drive |
Direct front and rear driveshafts with TraxLok™ 2/4wd selection and pushbutton front differential lock. |
| Front Suspension |
Independent double-wishbone with adjustable pre-load. 185mm travel |
| Rear Suspension |
Swingarm with single shock with adjustable pre-load. 185mm travel |
| Power Steering |
Yes |
| Front Brakes |
190mm dual hydraulic discs |
| Rear Brake |
160mm Sealed mechanical drum |
| Front tyres |
|
| Rear tyres |
|
| Fuel Capacity (l) |
14.7L, incl. 4.9L res. |
| Bore x Stroke (mm) |
92.0 x 71.5 |
| Dimensions - Length (mm) |
2103 |
| Dimensions - Width (mm) |
1205 |
| Dimensions - Height (mm) |
1219 |
| Wheelbase (mm) |
1268 |
| Seat Height (mm) |
869 |
| Ground Clearance (mm) |
190 |
| Towing Capacity (kg) |
385 |
| Front Rack Capacity (kg) |
40 |
| Rear Rack Capacity (kg) |
80 |
|
|
If you have any questions about this please don't hesitate to email sales@kikquads.co.uk or call us on (01200) 441247.
