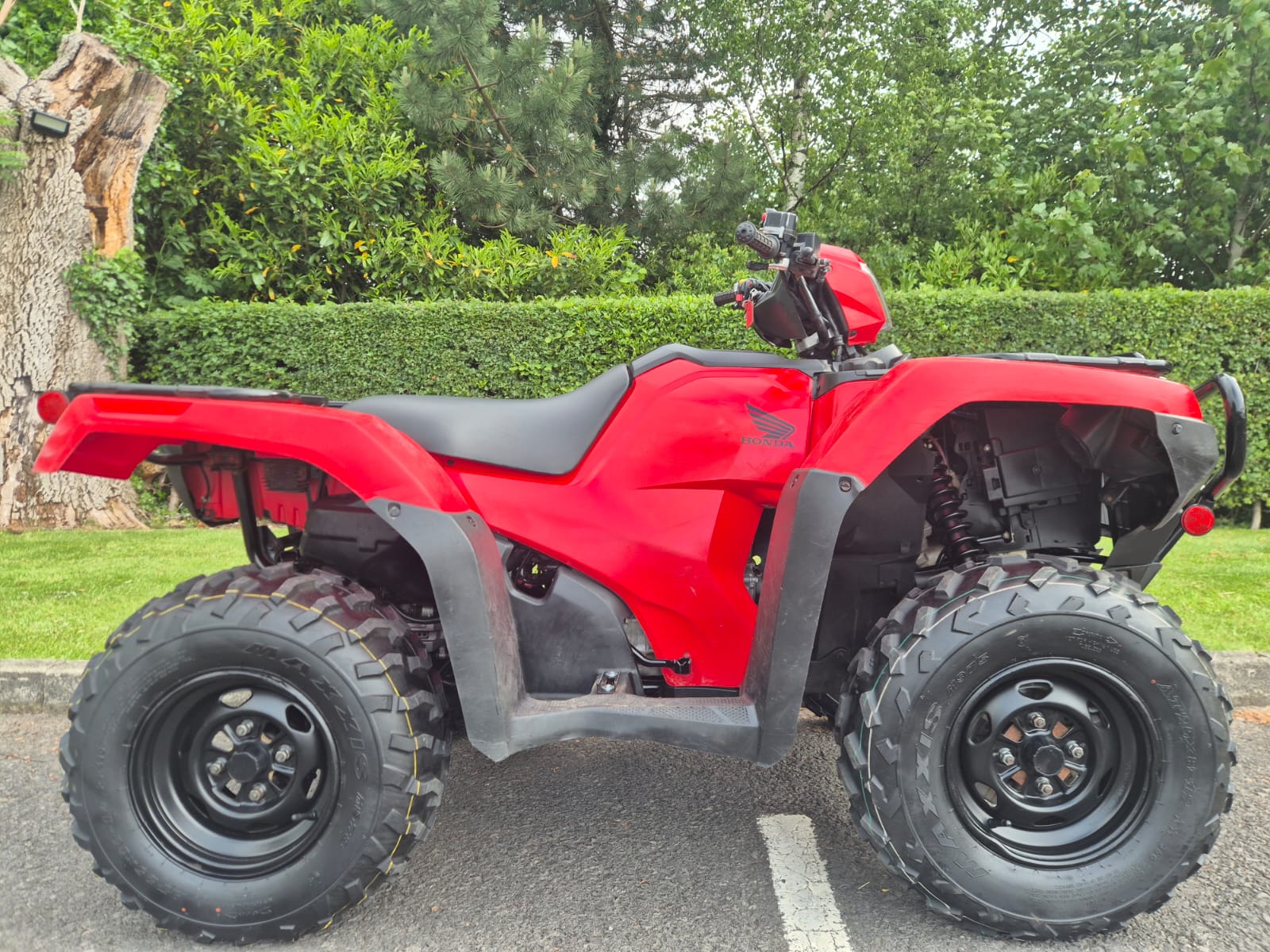

***SOLD*** Honda TRX520FM6 Foreman / Rubicon, 2021 model. Comes with loads of great built in features including power steering, independent rear suspension, selectable 2/4WD and diff lock. Comes fully serviced and with new tyres all round. Also fitted with a Logic AE500 accessory socket
Nationwide delivery available, ask for a price!
| Engine Type |
518cc liquid-cooled OHV longitudinally mounted single-cylinder four-stroke engine |
| Bore And Stroke |
92.0mm x 71.5mm |
| Induction |
PGM-FI |
| Ignition |
Full transistorized ignition |
| Starter |
Electric with optional auxiliary recoil |
DRIVE TRAIN
| Clutch |
Automatic |
| |
|
| Driveline |
Direct front and rear driveshafts with TraxLok® and locking front differential |
CHASSIS / SUSPENSION / BRAKES
| Front Suspension |
Independent double-wishbone; 7.28 inches travel |
| Rear Suspension |
Independent dual-arm; 8.46 inches travel |
| Front Brakes |
190mm hydraulic discs |
| Rear Brakes |
170mm hydraulic disc |
| |
|
DIMENSIONS
| Length |
84.5 inches |
| Width |
47.4 inches |
| Height |
48.6 inches |
| Wheelbase |
50.9 inches |
| Seat Height |
35.8 inches |
| Ground Clearance |
9.4 inches |
| Curb Weight |
677 lbs. (includes all standard equipment, required fluids and a full tank of fuel-ready to ride) |
| Fuel Capacity |
3.9 gallons, including 1.3-gallon reserve |
| Towing Capacity |
1322 pounds |
If you have any questions about this please don't hesitate to email sales@kikquads.co.uk or call us on (01200) 441247.
