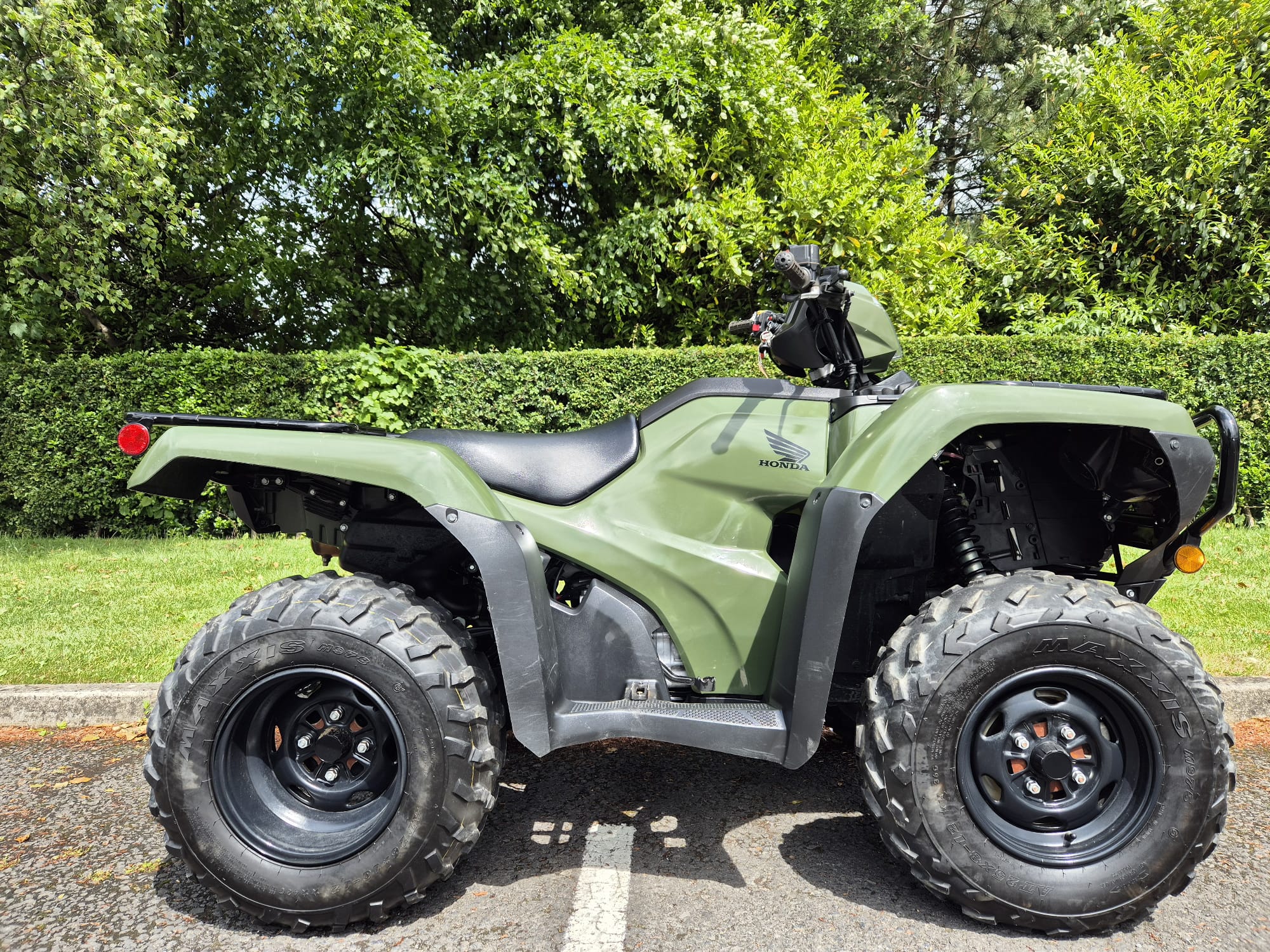

***SOLD*** Honda TRX520FM1 Foreman, 2024 model. Only 200 miles on the clock! This ATV comes with great features including selectable 2/4 and diff lock. Great saving on new price!
Delivery available, please ask for a price
|
Engine Type:
|
518cc liquid-cooled OHV longitudinally mounted single-cylinder four-stroke |
| |
|
| Compression Ratio: |
9.5:1 |
| Induction: |
Programmed Fuel Injection (PGM-FI), 36mm throttle body |
| Ignition: |
Full-transistorized with electronic advance |
| Starter: |
Electric |
| Clutch: |
Automatic |
| Transmission: |
five-speed with Reverse |
| Driveline: |
Direct front and rear driveshafts with TraxLok® and locking front differential |
| Suspension |
Front: Independent double-wishbone; 7.3 inches travel
Rear: Swingarm with single shock; 7.3 inches travel |
| Brakes |
Front: Dual hydraulic 190mm discs
Rear: Sealed 160mm mechanical drum |
| Tires |
|
| Length: |
82.8 inches |
| Width: |
47.4 inches |
| Height: |
48.0 inches |
| Seat Height: |
34.2 inches |
| Ground Clearance: |
7.5 inches |
| Wheelbase: |
49.9 inches |
| Turning Radius: |
10.5 feet |
| Fuel Capacity: |
3.9 gallons, including 1.3-gallon reserve |
The Honda Foreman is the professional’s choice, combining superb handling with big engine performance, switchable two and four wheel drive for heavy duty tasks in any environment.A fixed cross-beam axle to ensure ground clearance is maintained, regardless of the load on the rear of the bike. This bike has dual front disc brakes with a patent scraper system design for ultimate stopping power at all times.
