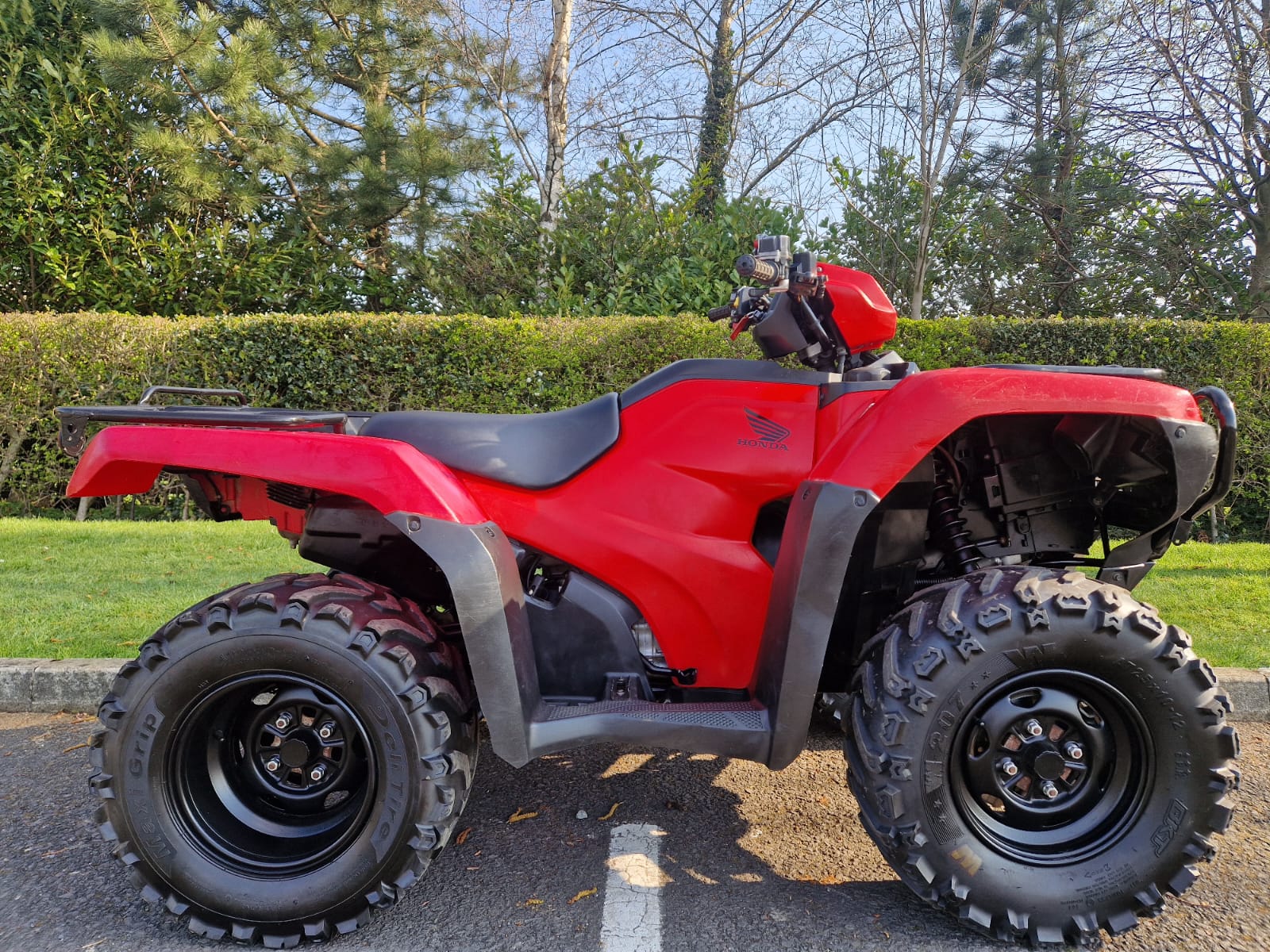

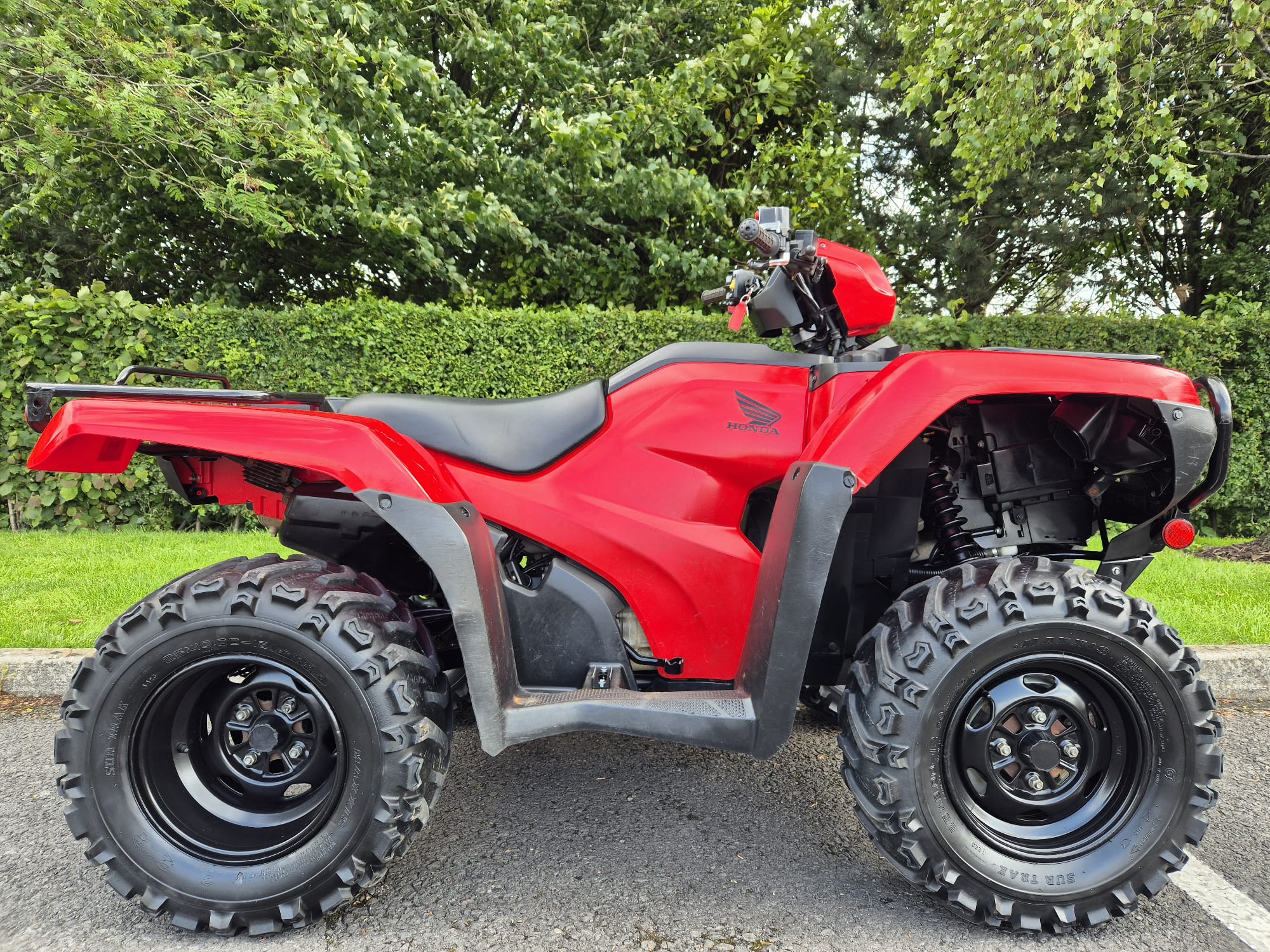

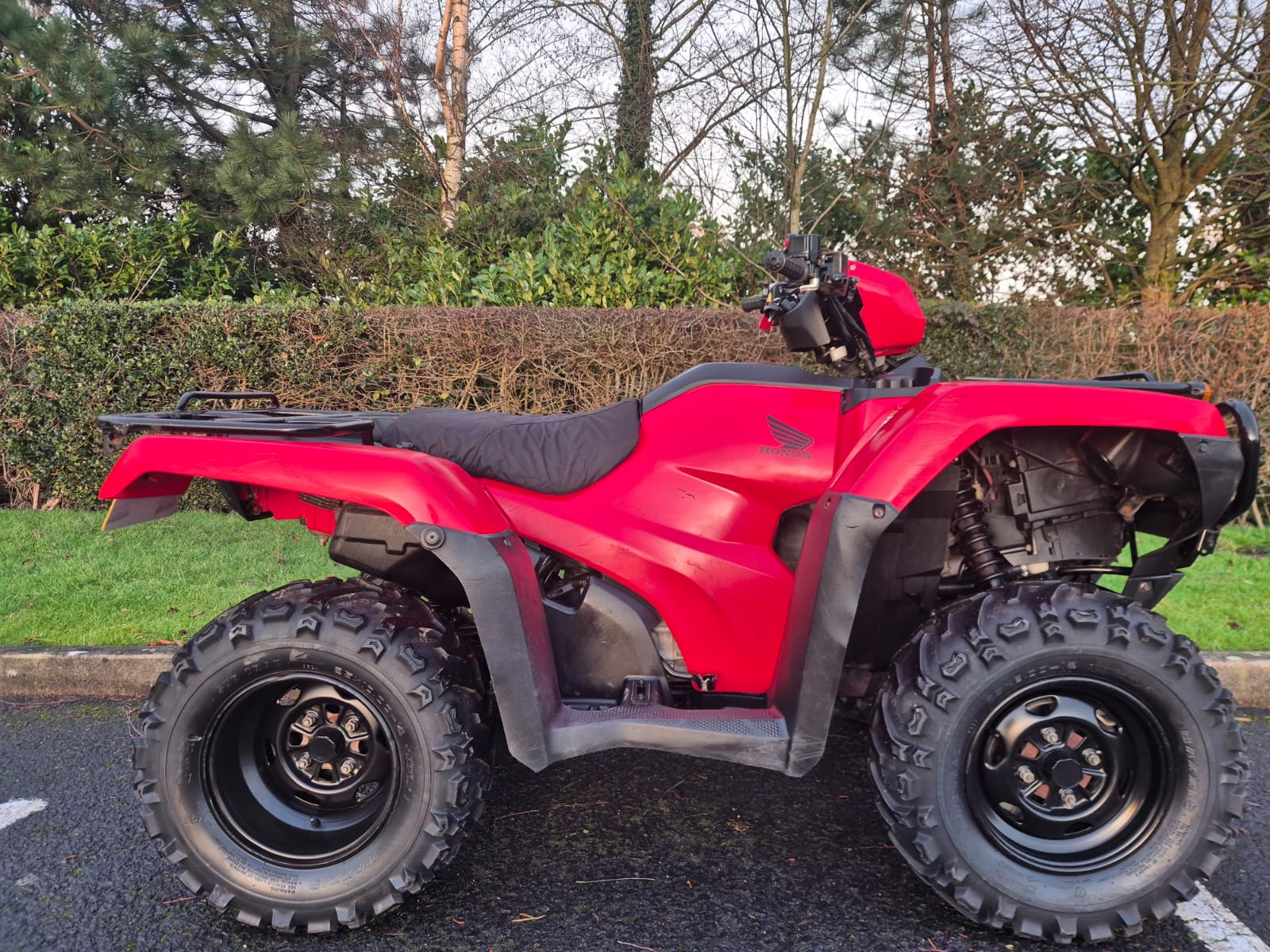

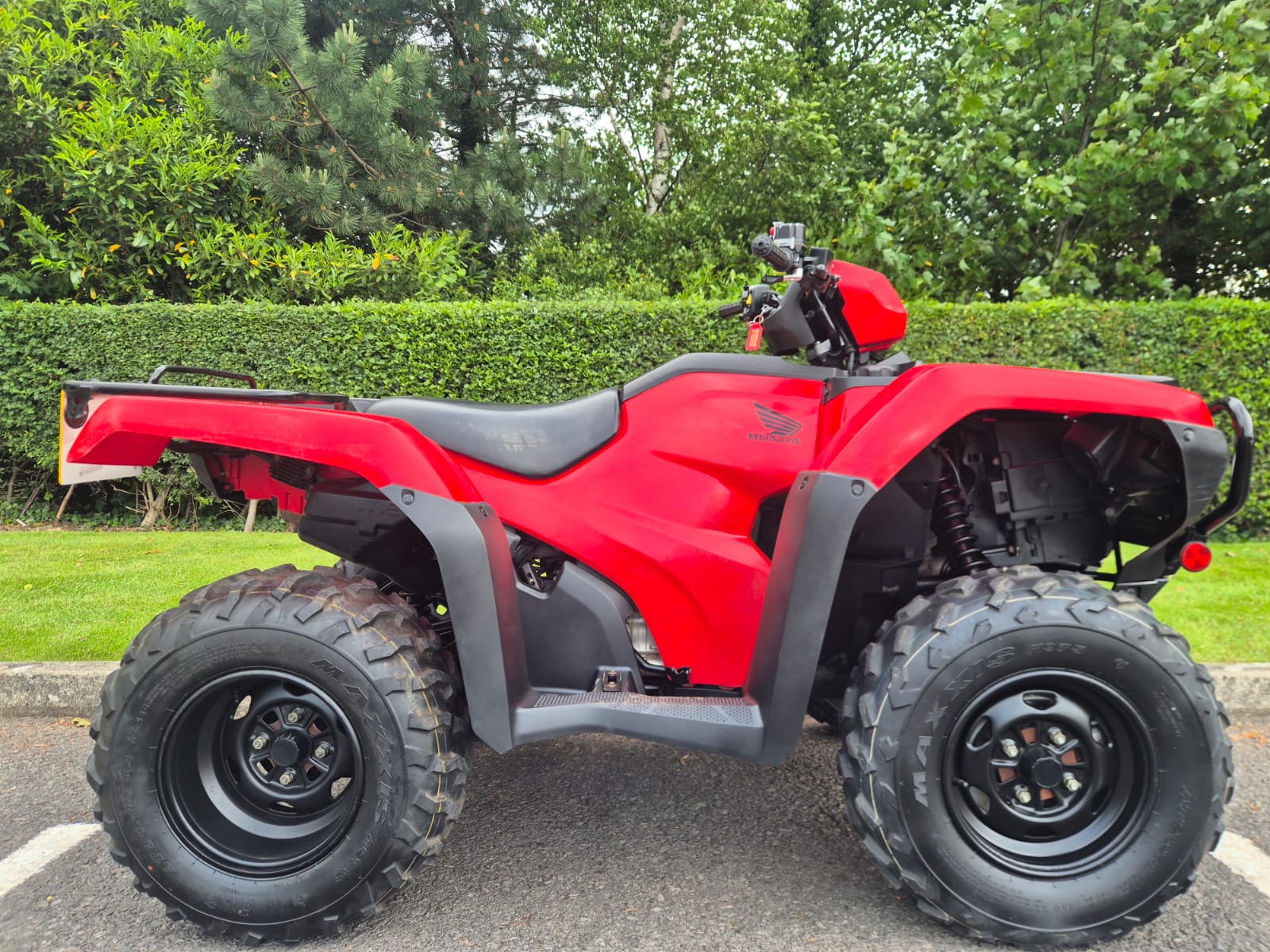

***SOLD*** Honda TRX500FE2 Foreman, 2017 model. Comes with great features including diff lock, selectable 2/4WD, power steering and electric shift making it a joy to ride. Comes Fully serviced and agri road registered.
Delivery available, ask for a price!
| Engine |
475cc liquid cooled, wet sump, longitudinally mounted OHV 4-stroke single cylinder |
| Carburation |
PGM-Fi 36mm throttle-body fuel injection system |
| Ignition |
Full-transistorized with electronic advance |
| Starter |
Electric |
| Transmission |
Electric shift transmission (Dual Clutch) with five forward gears with reverse |
| Drive |
Direct front and rear driveshafts with TraxLok™ 2/4wd selection and pushbutton front differential lock. |
| |
|
| Front Suspension |
Independent double-wishbone 185mm travel, preload adjustable |
| Rear Suspension |
Independent double-wishbone 185mm travel, preload adjustable |
| Front Brakes |
190mm dual hydraulic discs |
| Rear Brake |
170mm single hydraulic/mechanical disc |
| Front tyres |
25 x 8-12 radial |
| Rear tyres |
25x 10-12 radial |
| Fuel Capacity (l) |
14.7L, incl. 4.9L reserve |
| Bore x Stroke (mm) |
92.0 × 71.5 mm |
| Dimensions - Length (mm) |
2147 |
| Dimensions - Width (mm) |
1205 |
| Dimensions - Height (mm) |
1237 |
| Wheelbase (mm) |
1292 |
| Seat Height (mm) |
911 |
| Ground Clearance (mm) |
241 |
| Towing Capacity (kg) |
600 |
| Front Rack Capacity (kg) |
45 |
| Rear Rack Capacity (kg) |
85 |
If you have any questions about this please don't hesitate to email sales@kikquads.co.uk or call us on (01200) 441247.
